Hex Head Cap Screw Dimensions

Hex Head Cap Screw Dimensions



Hex Head Cap Screw Dimensions are a fundamental reference for engineers, fabricators, and procurement professionals working with heavy-duty fasteners. On this page you’ll find a detailed chart from Atlanta Rod and Manufacturing covering body diameter, across-the-flats, head height, and thread-length specifications for each nominal size of hex head cap screw. Whether you’re verifying compliance to standards or selecting the correct size for structural applications, this guide delivers the precise, engineering-grade data you need.





Hex Head Cap Screw Dimensions

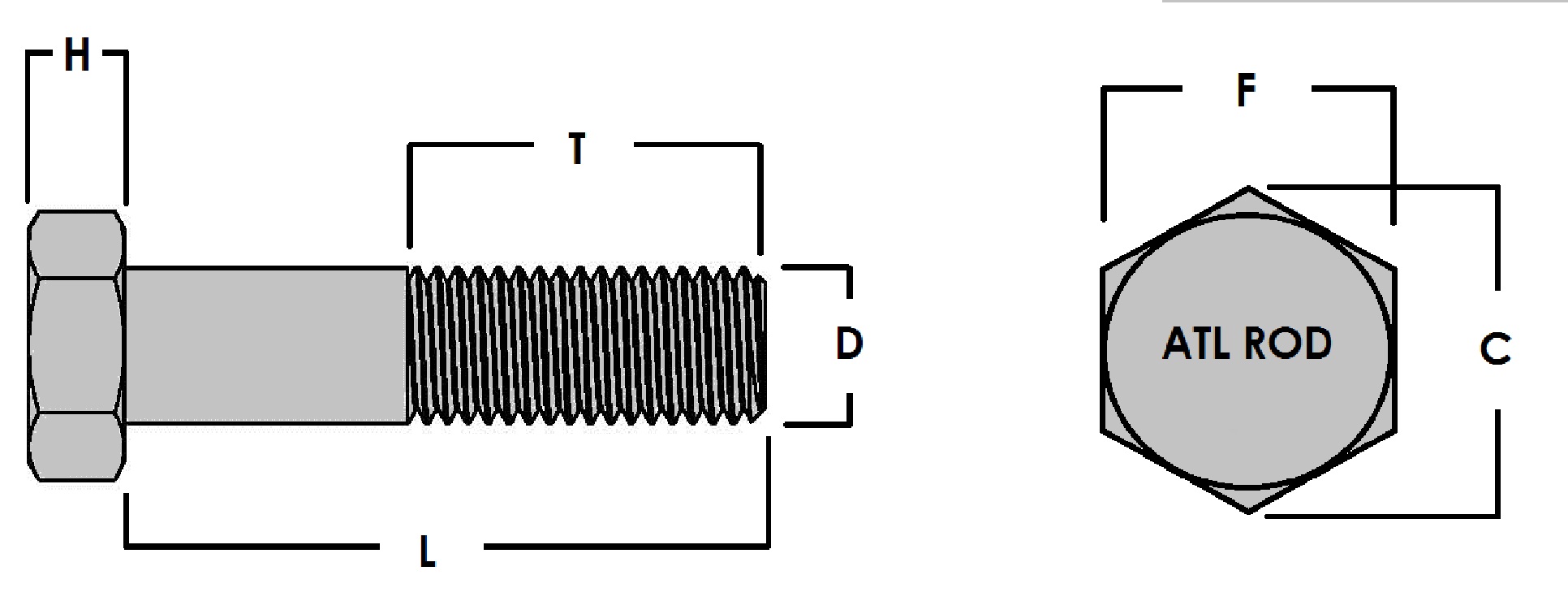

Diameter (D) Body Diameter (D) Across the Flats (F) Across the Corners © Head Height (H) Thread Lengths (T)
MAX MIN MAX MIN MAX MIN MAX MIN < 6” > 6”
1/2 0.515 0.482 0.875 0.85 1.01 0.969 0.364 0.302 1.25 1.5
5/8 0.642 0.605 1.062 1.031 1.227 1.175 0.444 0.378 1.5 1.75
3/4 0.768 0.729 1.25 1.212 1.443 1.383 0.524 0.455 1.75 2
7/8 0.895 0.852 1.438 1.394 1.66 1.589 0.604 0.531 2 2.25
1 1.022 0.976 1.625 1.575 1.876 1.796 0.7 0.591 2.25 2.5
1 1/8 1.149 1.098 1.812 1.756 2.093 2.002 0.78 0.658 2.5 2.75
1 1/4 1.277 1.223 2 1.938 2.309 2.209 0.876 0.749 2.75 3
1 3/8 1.404 1.345 2.188 2.119 2.526 2.416 0.94 0.81 3 3.25
1 1/2 1.531 1.47 2.375 2.3 2.742 2.622 1.036 0.902 3.25 3.5
1 3/4 1.785 1.716 2.75 2.662 3.175 3.035 1.196 1.054 3.75 4
2 2.039 1.964 3.125 3.025 3.608 3.449 1.388 1.175 4.25 4.5
2 1/4 2.305 2.214 3.5 3.388 4.041 3.862 1.548 1.327 4.75 5
2 1/2 2.559 2.461 3.875 3.75 4.474 4.275 1.708 1.479 5.25 5.5
2 3/4 2.827 2.711 4.25 4.112 4.907 4.688 1.869 1.632 5.75 6
3 3.081 2.961 4.625 4.475 5.34 5.102 2.06 1.815 6.25 6.5
